Specifications:

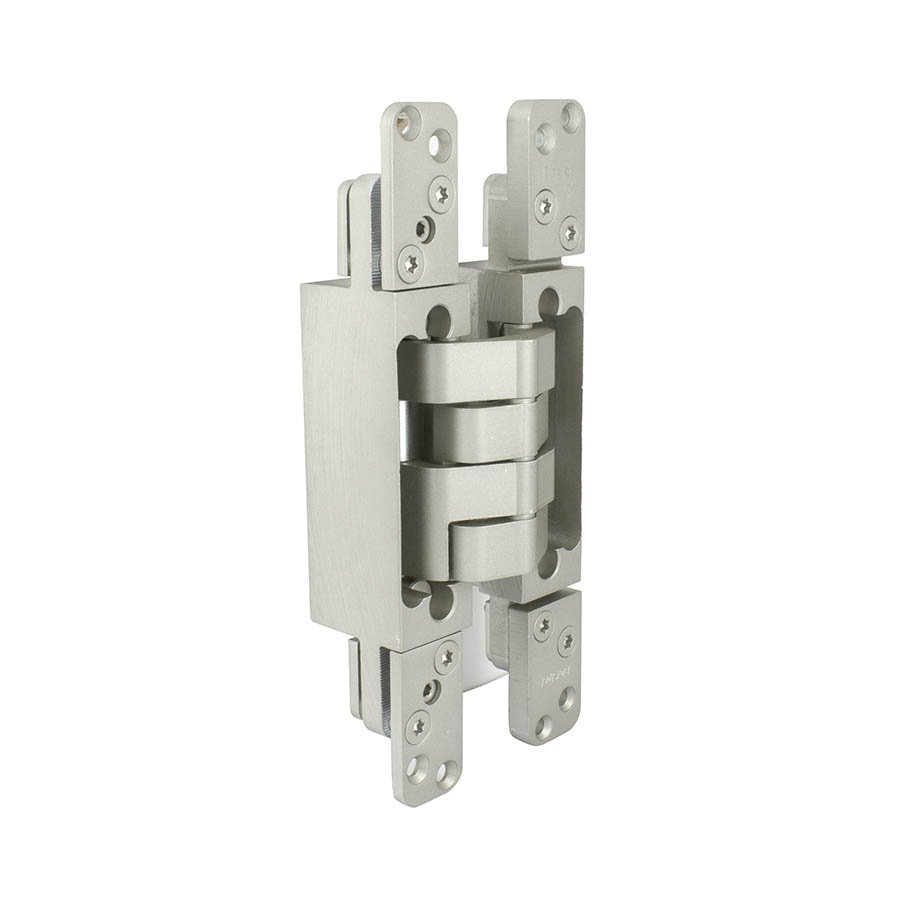

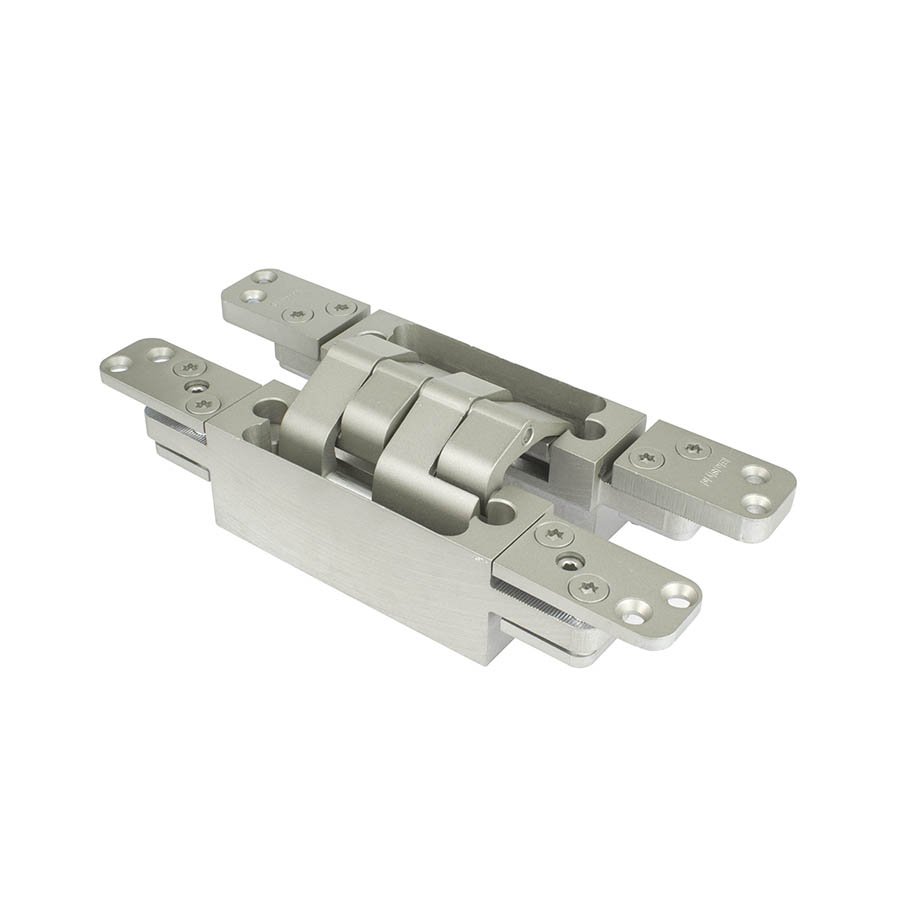

- 3D Concealed Hinge
- Height: 9.25" [235mm] Width: Frame: 1.46" (37mm) / Door: 1.38" (35mm)
- Minimum Door Thickness: 1-3/8”
- Wide Throw for Cladding up to 8mm
- Sideways ± 3,0 Mm, Up-Down +Mm 2,0 Mm, In-Out
- For Standard Doors up to 160kg with 2 Hinges Installed
- Magnetically fixed Cover Plates for Optics: Free-of-Screws
- Suitable for Fire-Rated Doors
